PVC 3 & 4 Core Round Cables

PVC 3 CORE ROUND CABLE FOR SUBMERSIBLE PUMPS (1100 VOLTS)

Conductor		PVC Insulation		PVC Sheath		Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	mm
0.50	16/0.20	0.60	2.05	0.90	6.00	39.00	4
0.75	24/0.20	0.60	2.30	0.90	6.80	26.00	7
1	32/0.20	0.60	2.50	0.90	7.00	19.50	11
2.50	36/0.30	0.90	3.80	1.50	11.00	7.41	18
4.00	56/0.30	1.00	4.50	1.60	13.00	4.95	26
6.00	84/0.30	1.00	5.25	1.60	14.60	3.30	31
10.00	140/0.30	1.00	6.50	2.00	18.00	1.91	42
16.00	224/0.30	1.00	8.00	2.00	21.20	1.21	57
25.00	350/0.30	1.20	10.10	2.40	26.50	0.780	72
35.00	490/0.30	1.20	11.30	2.60	29.50	0.554	90

PVC 4 CORE ROUND CABLE FOR SUBMERSIBLE PUMPS (1100 VOLTS)

Conductor		PVC Insulation		PVC Sheath		Conductor Resistance at 20°C (Max) Ω/km	Current Rating at 40°C Amps.
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Core Dia	Nominal Thickness	Approx. Overall Dimensions
Sq. mm.	Nos./mm	mm	mm	mm	mm
1.50	22/0.30	0.80	3.25	1.50	10.80	12.10	14
2.50	36/0.30	0.90	3.80	1.65	12.50	7.41	18
4.00	56/0.30	1.00	4.50	1.65	14.10	4.95	26
6.00	84/0.30	1.00	5.25	1.65	16.00	3.30	31
10.00	140/0.30	1.00	6.50	2.00	20.35	1.91	42
16.00	224/0.30	1.00	8.00	2.00	23.40	1.21	57
25.00	350/0.30	1.20	10.10	2.40	29.20	0.780	72
35.00	490/0.30	1.20	11.30	2.60	32.40	0.554	90

High Flexibility

Excellent resistant to moisture, abrasion, grace, oil

Long Life

Excellent mechanical & electrical properties

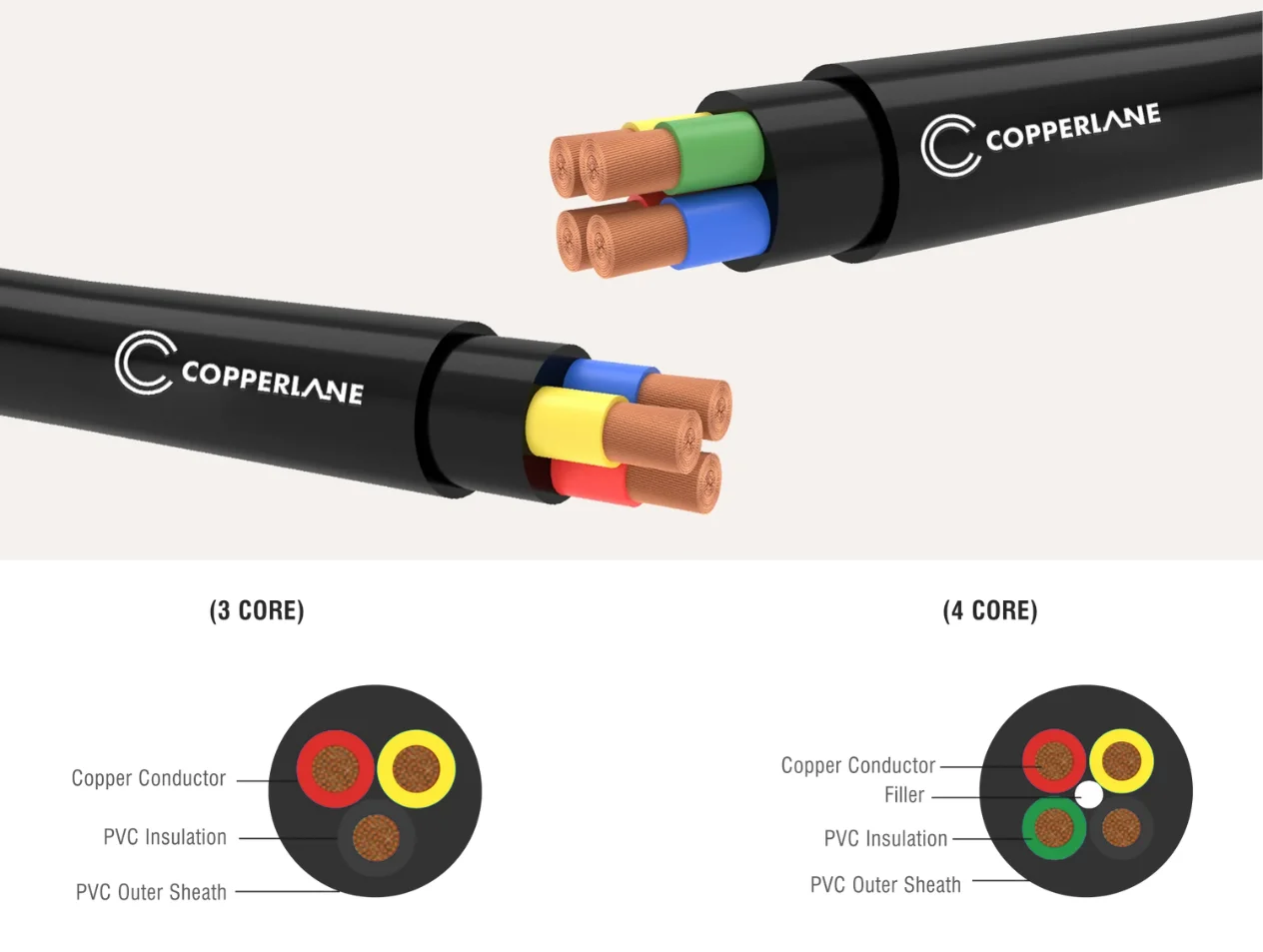

Conductor :

Finely stranded bare flexible copper conductor.

Insulation :

PVC

Sheath :

PVC

Core Colours :

3 Core : Red, Yellow, Blue OR Brown, Blue, Black
4 Core : Red, Yellow, Blue, Green OR Brown, Blue, Black, Yellow with Green line OR Green with Yellow line

1 :

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

2 :

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.
