House Wire

Nominal cross section area of conductor	Number / Nominal dia of strands	Nominal Insulation Thickness	Approx Overall Diameter	Max. Conductor Resistance at 20°C	Current Rating
Nominal cross section area of conductor	Number / Nominal dia of strands	Nominal Insulation Thickness	Approx Overall Diameter	Max. Conductor Resistance at 20°C	Casing	Concealed
Sq. mm	mm	mm	mm	ohm/km	AMPS	AMPS
1.00	14/0.30*	0.70	2.80	18.1	14	13
1.50	22/0.30*	0.70	3.00	12.1	18	16
2.50	36/0.30*	0.80	3.70	7.41	24	20
4.00	56/0.30**	0.80	4.20	4.95	32	26
6.00	84/0.30**	0.80	4.80	3.30	42	35

Zero Halogen acid gas Evolution

Non corrosive and non toxic insulation

High temperature resistant insulation

Better Flame retardant property

Excellent resistant to moisture, abrasion, grace, oil

Long Life

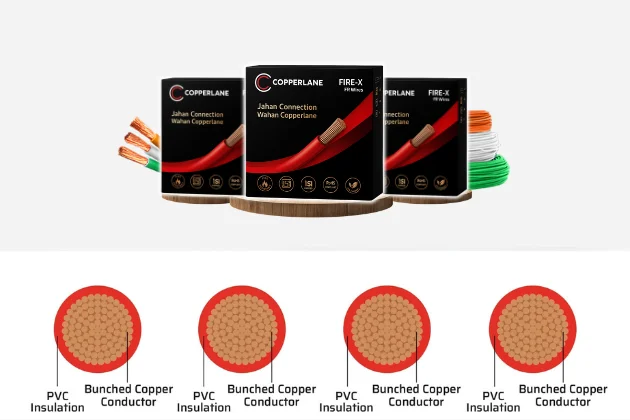

Conductor :

EC grade flexible copper class 5 generally conforms IEC 60228, IS 8130

Insulation :

FR+HR/FRLS-H/ZHFR Insulation compound with a high insulation resistance value (-15°C to +70°C / +90°C/ +105°C)

Core Colors :

Red, Blue, Black, Brown, Grey, Orange, White, Green, Yellow
Any other Colour on specific request can also be supplied

1 :

Fixed installation in conduits and under plaster, for appliance wiring & distribution stations. Fixed Wiring in Conduits & Building wire Application.
