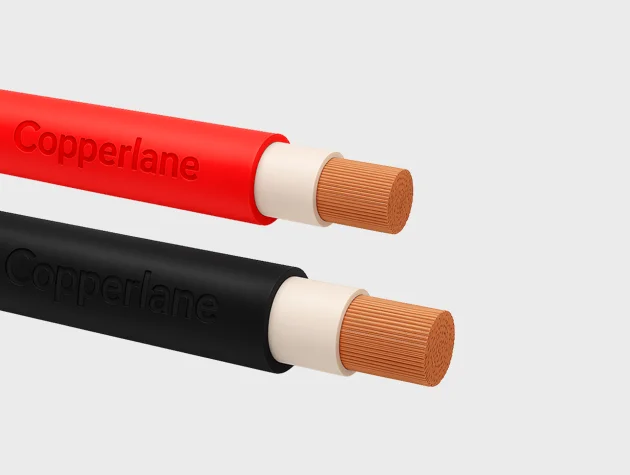

Battery Cable

Technical Data :

Fixed Installation : 40 c to max. + 90 C

Nominal Voltage : 600 V

Test Voltage : 2500 V

Mechanical Properties : Tensile Strength = 10 N/mm Min. Elongation = 300 Min.

Min. Bending Radius : 6X Cable Diameter

Flame Propagation : Flame Retardant Test As Per IEC 60332-1

TECHNICAL INFORMATION

Cross ectional Area	Copper Construction	Inner Dia	Outer Dia Appx.	Max Conductor Resistance at 20 C
Sq.mm	Nos.X Dia. mm	mm	mm	Ω/Km
16	511 X 0.20	8.00	10.70	1.210
25	798 X 0.20	9.50	12.10	0.780
35	1121 X 0.20	11.00	14.20	0.554
50	1596 X 0.20	12.30	16.30	0.386
70	2220 X 0.20	14.40	18.70	0.272
95	1349 X 0.30	16.60	20.80	0.206

Excellent flexibility

The NESKEB Auto cables is impervious to water, petrol, diesel, acids, engine and lubricating oils and grease resistant

High mechanical strength

Excellent flame retardant properties

Excellent mechanical & electrical properties

Special heat resistant insulation

Minimum bending radius

Conductor :

High conductivity, bare annealed copper flexible conductor, EC copper class 5 and class 6 generally conforms to IEC 60228, DIN VDE 0281.

Insulation :

Double Insulated flexible Nitrile rubber (NBR) insulated.

Colours Code :

Orange & Black Jacket
*Any other Color on specific request can also be supplied

1 :

Designed for the secondary (high current) connection to automatic or hand - held metal arc battery electrodes. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor operated line and spot battery machines

2 :

These wires used low voltage circuit in automobiles such a Vehicles and Motor cycles. Where high flexibility is required.
